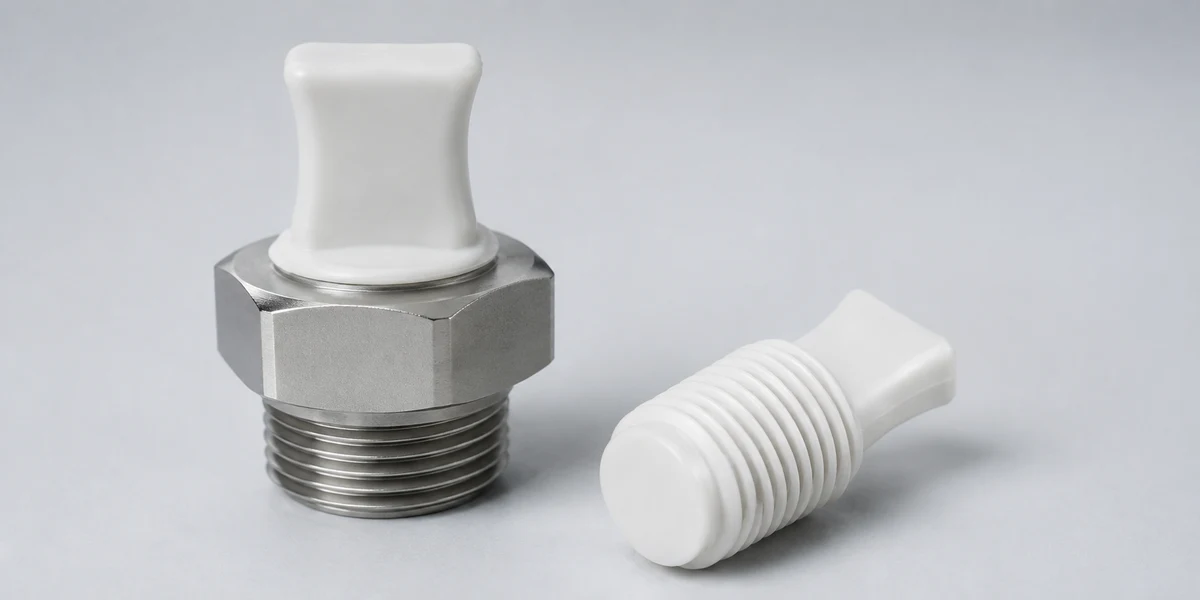

Sealing
Helps block openings in components and assemblies.
Masking Plugs

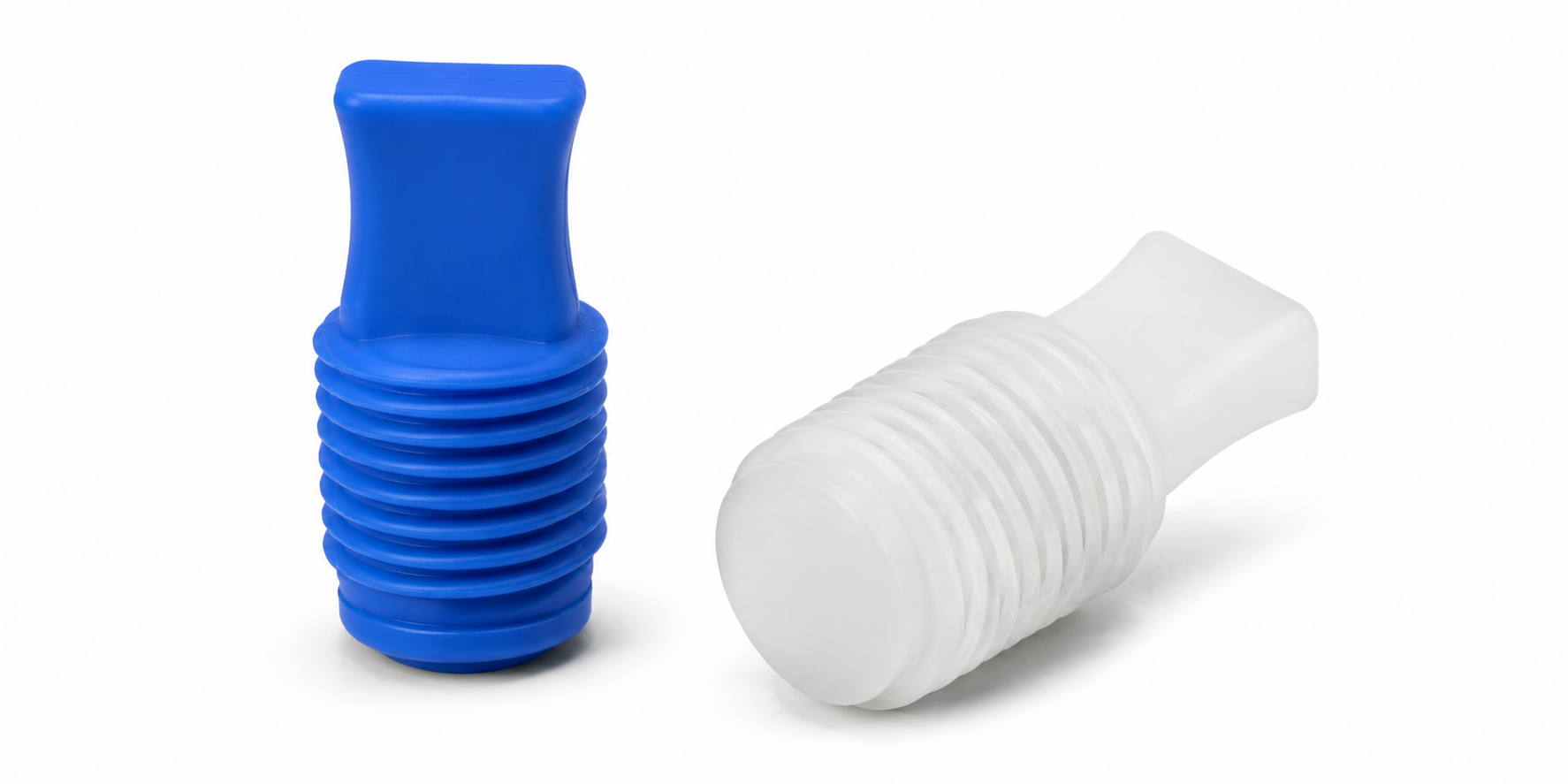

Silicone Masking Plugs
Threaded and ribbed silicone masking plugs for holes and ports.
- Material
- Silicone (VMQ)
- Custom manufacture
- Made at our factory to your dimensions, hardness and color requirements.
- Technical support
- Send a drawing or sample for a fit and material review.
STANDARD DIMENSIONS
Standard dimensions
↓ Download DrawingUse the reference sizes below to compare the fit. Confirm availability and lead time with your quotation.
Custom dimensions can also be manufactured to your requirements.
Numeric range filters
| 1 | M3/M4 | 2.01 | 3.99 | 19.05 |
| 2 | M5/M6 | 3.99 | 5.99 | 25.4 |
| 3 | M8 | 5.99 | 8 | 25.4 |
| 4 | M10 | 7.95 | 10.31 | 25.4 |
| 5 | M12 | 10.01 | 11.99 | 25.4 |
| 6 | M14 | 11.89 | 14.27 | 25.4 |
| 7 | M16 | 14 | 16 | 25.4 |
| 8 | M18 | 16 | 18.01 | 25.4 |
| 9 | M20 | 18.01 | 19.99 | 25.4 |
| 10 | M22 | 19.99 | 22.5 | 25.4 |
| 11 | M24 | 22.5 | 24 | 25.4 |
| 12 | M26 | 24 | 26.01 | 25.4 |
| 13 | M28 | 26.01 | 27.99 | 25.4 |
| 14 | M30/M32 | 28.58 | 31.75 | 25.4 |
A: top diameter. B: bottom diameter. C: overall length. All dimensions are in millimeters. Custom sizes available upon request.
Product details
Our factory makes silicone masking plugs with threaded and ribbed profiles for masking holes and ports. Send the mating thread or bore dimensions, coating temperature and process media so we can review the profile and silicone grade. Custom dimensions, colors and Shore A hardness can be developed from your drawing or sample.
Features
- Custom dimensions
- Silicone grade selection
- Color and hardness options
- Drawing and sample review
Applications
- Powder Coating
- Liquid Painting
- Anodizing
- Electroplating
- High-Temperature Masking
- Thread & Bore Protection
Product information
- material
- Silicone (VMQ)
- hardness
- 40, 55, 70 Shore A; subject to grade confirmation
- colors
- Blue, orange, black, white; custom options
- temperature
- Confirm operating range with engineering
Product questions
Are custom sizes or colors available?
Yes. Share your drawing, color and estimated quantity for a manufacturing review.
How do I choose the correct plug?
Measure the hole and insertion depth, then provide the operating temperature and contact media so we can review the fit and material.
Made to your requirements
Our factory can adapt the dimensions and material to your drawing or sample.
Choose your dimensions, material, hardness and color.
Dimensions
Custom dimensions
to your drawing or sample
Material
Silicone and other
rubber compounds
Hardness
From soft to firm
to suit the material and fit
Color
Standard and custom
colors available
Application Examples
Discuss the intended use so we can review the shape, compound and sample checks.

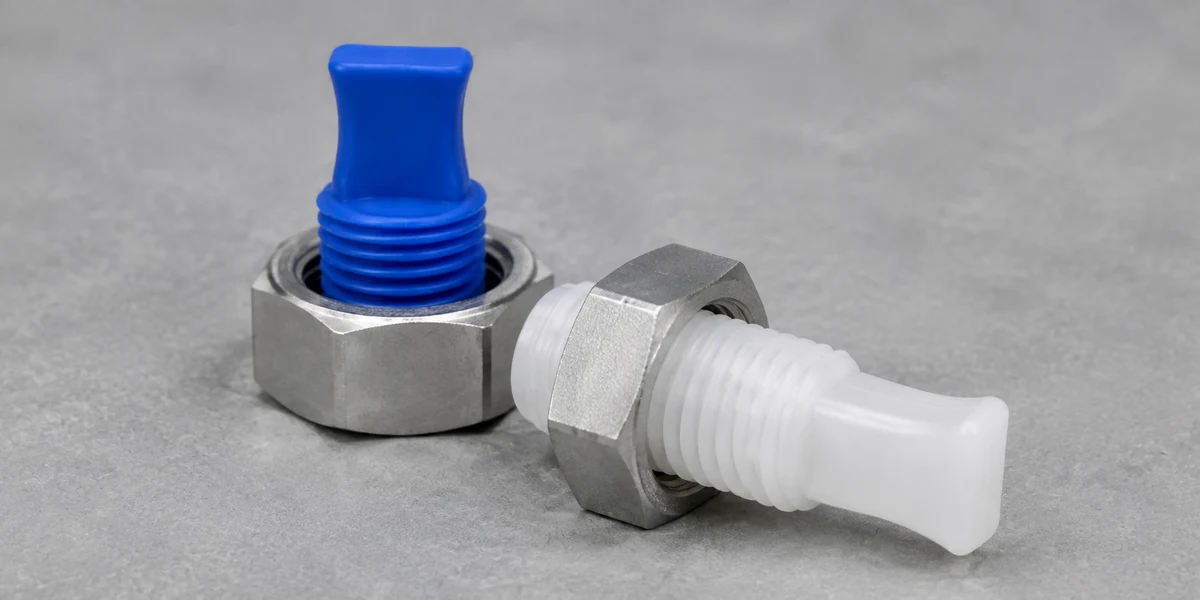

Hole Protection
Covers and protects threaded or plain holes during manufacturing or processing.

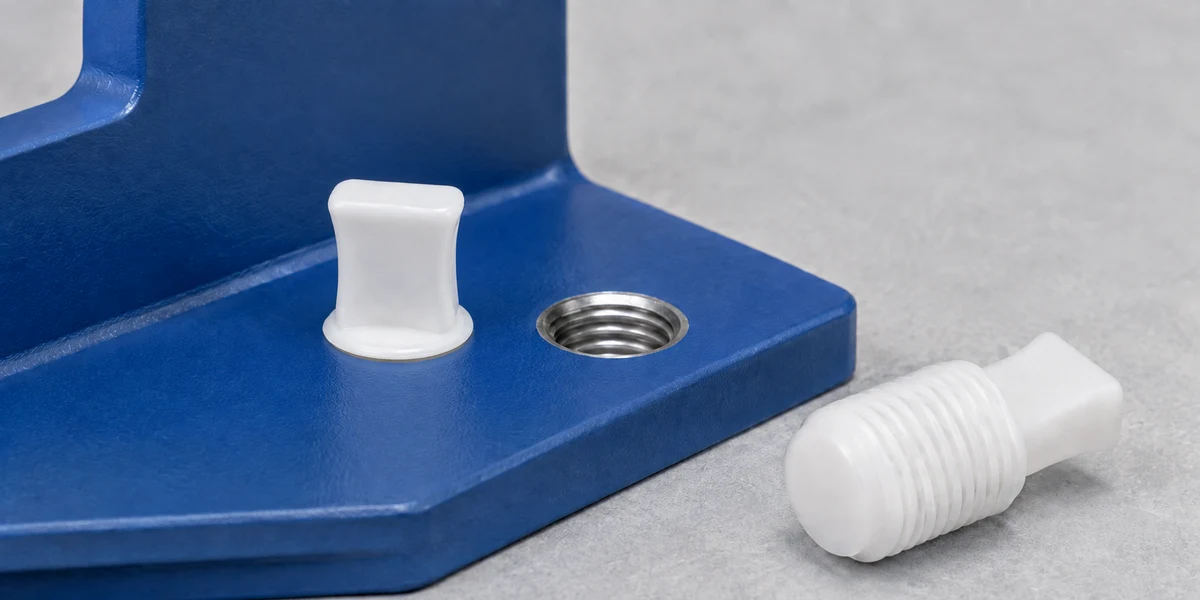

Masking
Useful for masking holes in surface treatment processes.
NEED A CUSTOM SOLUTION?
Need a Custom Size or Material?
Send your drawing or sample details to our factory. Include the mating dimensions, service conditions and quantity so we can review your part.
Get a Quote
